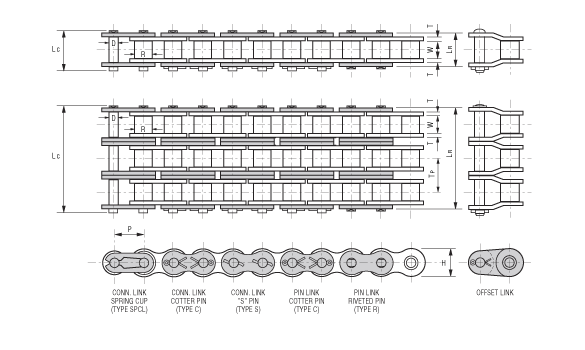

American Standard - Heavy Series Chain

Heavy Series chains, also built in accordance with ANSI B29.1, are designed using link plate material from next larger size chain. Heavy Series chain are not necessarily stronger than Standard Series chains, but the thicker link plate material provides an increase in fatigue resistance for those drives subjected to heavy shock loads, multiple stops/starts or reversing.

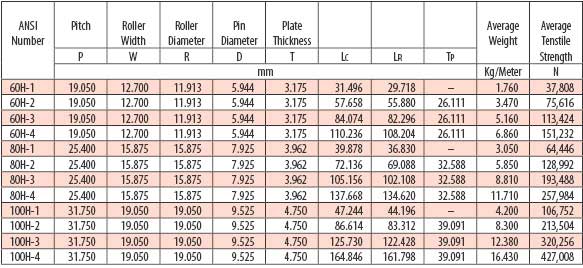

Product codes listed in this chart: 60H-1, 60H-2, 60H-3, 60H-4, 80H-1, 80H-2, 80H-3, 80H-4, 100H-1, 100H-2, 100H-3, 100H-4
